Battery Magnet Porter

• Overview

  - A battery magnet is the best for arranging steel materials and plates, for arranging materials on a jobsite, and for stevedoring in the processing part. It is used for steel warehouses, steel transportation business, quays, and lathes that are necessary for mechanically-processed bridges including steel and shipbuilding.

• Features

  It can be used in any place without power supply. It doesn’t need the sudden change of a power line.
  - It is a battery-type compact design so there is no worry about power failure.
  - It is possible to absorb and take off materials through one-touch button.
  - It is designed thoroughly, safely. A meter or a buzzer is available to check the time for charging.
  - The body is strong against shocks, and it can safely do very severe works.

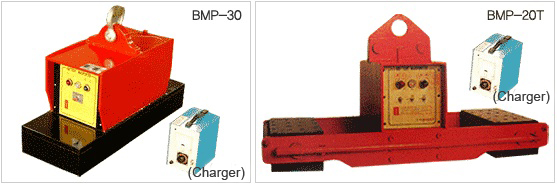

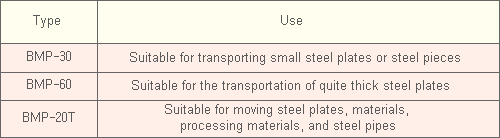

  - BMP-15 and BMP-30 are suitable for transporting small plates or single-material steel structures.
  - BMP-60 and BMP-100 are suitable for moving quite thick steel plates.
  - BMP-20T is suitable for moving a long steel plate, and 2 ea of magnet are attached to the beam.
  - BMP-25V and BMP-50V, which are V-shaped, are suitable for the transportation of circular bars, steel pipes, and section shape steel.

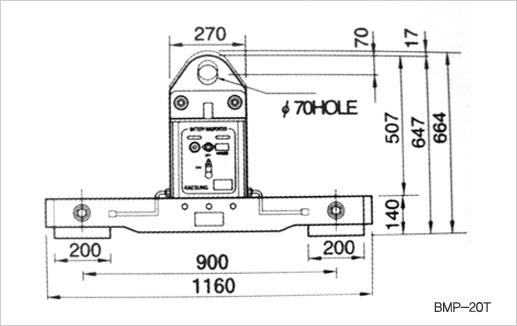

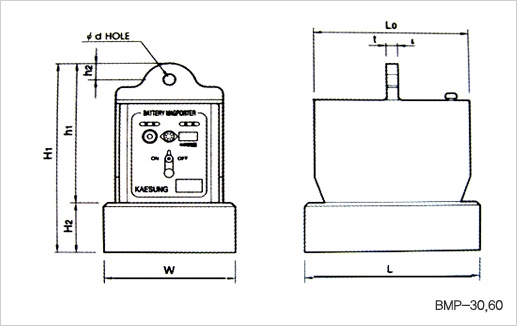

• Diagram of appearance



• Example of using
